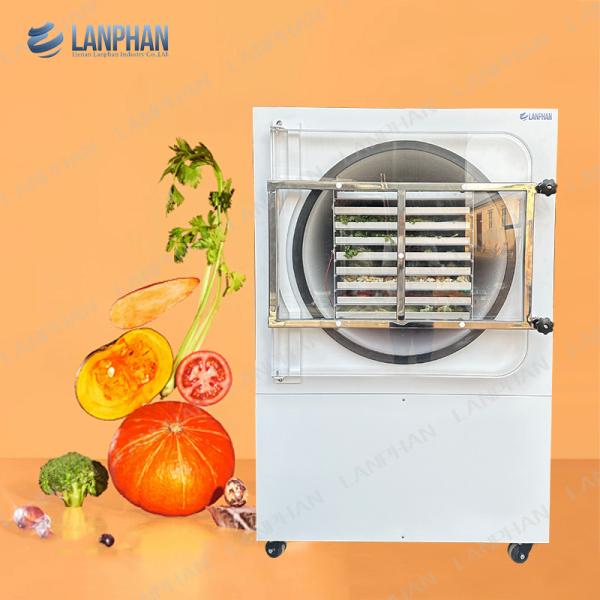

    5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine

    Ask Lasest Price
    Brand Name : Lanphan
    Model Number : HFD-50
    Certification : contact us
    Price : $21500/unit
    Payment Terms : L/C, T/T, Paypal, Alipay...
    Supply Ability : 50 units per month
    Delivery Time : 10-30 working days
    • Product Details
    • Company Profile

    5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine

    5M2 9-Layer commercial freeze dryer lyophilizer fruit vacuum freeze drying machine

    Vacuum Freeze Drying Machine Parameter

    ModelHFD-50
    Tray space5m2
    Cold trap temperature-70℃
    Number of trays18pcs
    Processing capacity60-70 kg/batch
    Material tray size490*540*30mm
    Power supply220V/50HZ can be customized 110V or 380V
    Layer Spacing50mm
    Overall power7500W

    Vacuum Freeze Drying Machine Application

    Vacuum Freeze Drying Machine Advantages

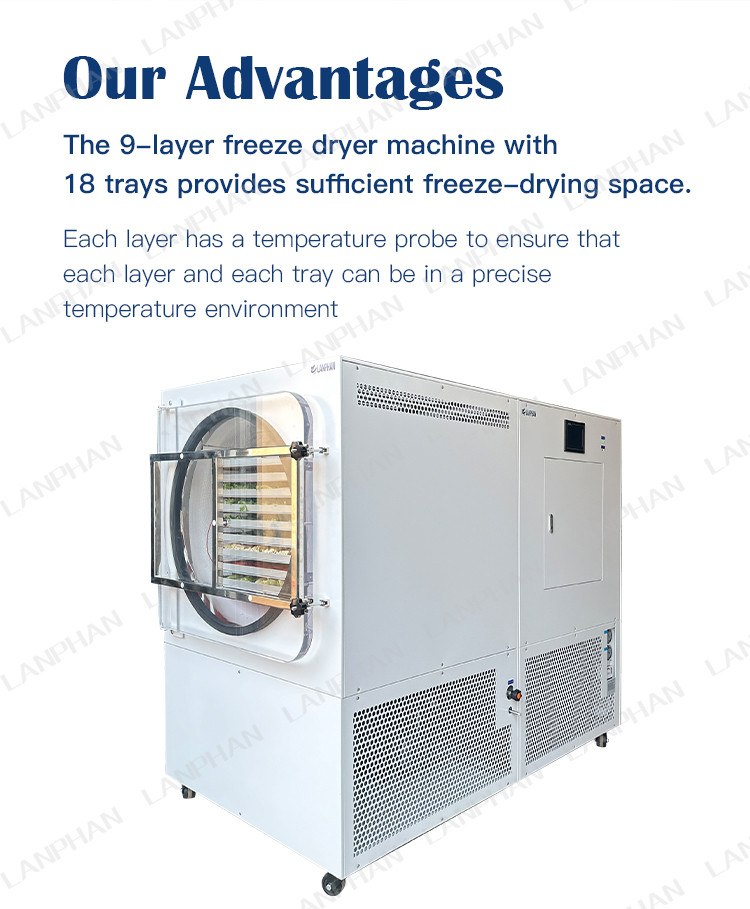

    The 9-layer freeze dryer machine with 18 trays provides sufficient freeze-drying space.
    Each layer has a temperature probe to ensure that each layer and each tray can be in a precise temperature environment
    Dual compressors
    1. Lower condensing temperature: Lower condensing temperature can be achieved, which can be as low as-70 ℃.
    2. Stronger refrigeration capacity: two compressors work together, more refrigeration power, faster refrigeration.
    3. Higher system stability: Each compressor in the dual compressor system has an independent control system and protection device.
    4. More accurate temperature control.

    5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine

    The water trap chamber and the drying chamber are separate.
    1. Avoid cross contamination: Avoid the moisture or impurities in the water trap chamber to reverse pollute the materials in the drying chamber, so as to ensure the purity and quality of the product.
    2.Improve drying efficiency: the drying chamber and the water capture chamber have independent temperature control systems and vacuum systems respectively, which canbe precisely regulated according to their respective needs.

    Vacuum Freeze Drying Machine Details

    5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine

    Vacuum Freeze Drying Machine Factory

    5M2 9-Layer Commercial Freeze Dryer Lyophilizer Fruit Vacuum Freeze Drying Machine
