    Continuous 380V Short Path Distillation Equipment

    Ask Lasest Price
    Brand Name : Lanphan
    Certification : CE
    Supply Ability : 1000 Set/Sets per Month
    Price : $1,360.00
    • Product Details
    • Company Profile

    Continuous 380V Short Path Distillation Equipment


    Short Path Fractional Destilator Machine Continuous Distillation


    Product Description

    Brief Description

    Basic constitution: the column cylinder is equipped with an external heating mantle, a rotor and an internal condenser. The fixing frame of rotor is precisely equipped with the scratch film and anti-splash device. The internal condenser is placed in the center of the evaporator, and the rotor is between the column cylinder and the condenser.


    Distillation process: The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.


    Continuous 380V Short Path Distillation EquipmentContinuous 380V Short Path Distillation Equipment

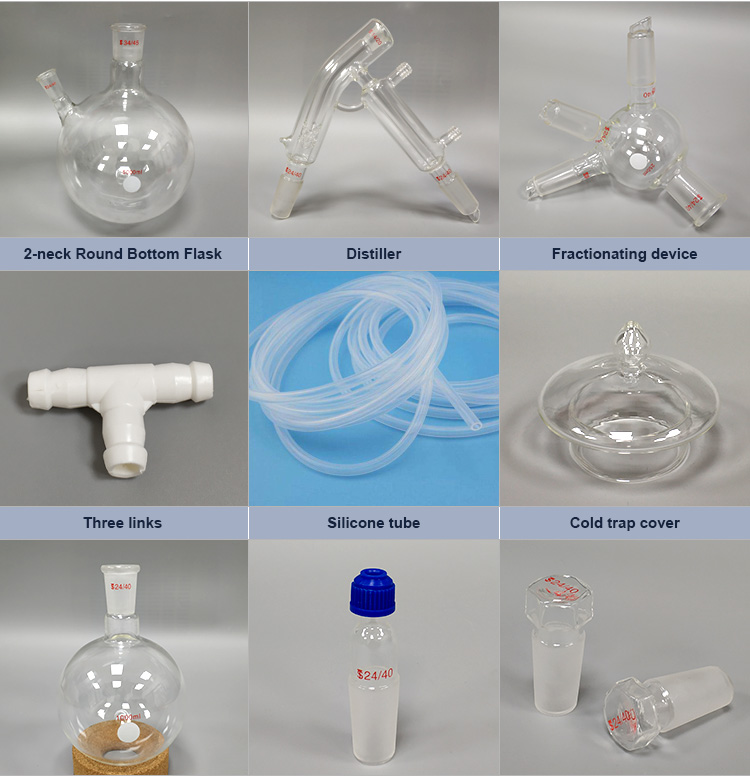

    Accessories NameSpecificationNumberUnit
    12-neck Round Bottom Flask10L,34/45*2,24/401piece
    2Distiller34/45,24/40,14/202piece
    3Fractionating device500ml,24/402piece
    4eggplant shaped flask2000ml,24/402piece
    5cold trap80*350mm,24/401piece
    6cold trap cover70mm1piece
    7Receiving Flask2000ml,24/401piece
    8Temperature casing pipe14/202piece
    9Temperature casing pipe24/401piece
    10Hollow plug14/202piece
    11Hollow plug24/401piece
    12funnel110mm,24/401piece
    13Mercury thermometer0-360°C2piece
    14GL14 Cover8piece
    15mouth clip for Stainless steel bottle34#2piece
    16mouth clip for Stainless steel bottle24#4piece
    17mouth clip for plastic bottle24#1piece
    18silicone tube8*143meter
    19Wood pallet1403piece
    20Lifting platform (stainless steel)200*2002piece
    21iron stand140*2001piece
    22Cross clip0-20mm2piece
    23Three claw cliplarge3piece
    24Experimental chain clip1piece
    25Three links (plastic)8mm1piece
    26vacuum fat (50g)75011box
    Total49
    27magnetic stirrer heating mantleZNCL-T1set
    Accessoriesmain engine1
    Vertical rod2set
    Cross clip2piece
    External sensor500mm1piece
    internal sensor1piece
    Tetrafluoro rotors1piece
    28rotary vane vacuum pump2XZ-41
    29Temperature Control Low-Temperature Coolant Circulation PumpDLSB-10/251

    Continuous 380V Short Path Distillation EquipmentContinuous 380V Short Path Distillation EquipmentContinuous 380V Short Path Distillation Equipment

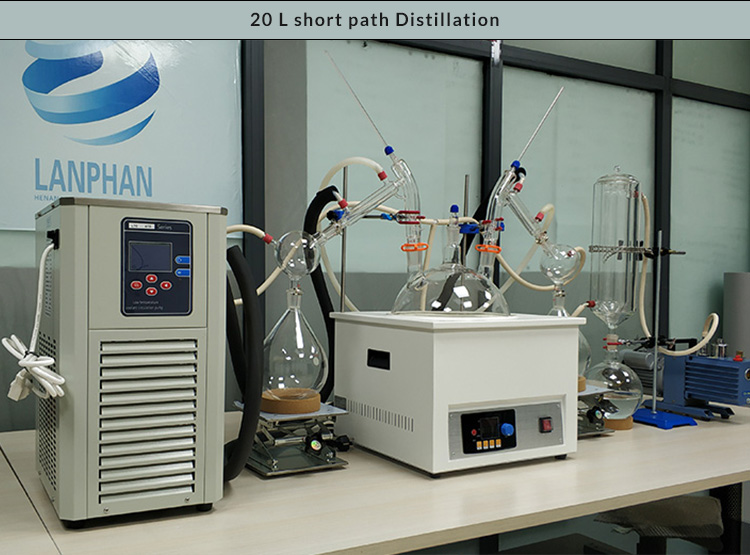

    Short-Path Distillation
    ModelSD-2SD-5SD-10SD-20
    MaterialG3.3
    Heating Capacity(ml)2000500010002000
    Heating temperature(°C)Room temperature -250
    Accuracy(°C)±1
    Vaccuum Degree(Mpa)0.098
    Working temperature(°C)5-40
    Voltage220V/50Hz or 110V/60Hz380V/50Hz
    Package Size450*450*600580*580*735850*850*600
    Weight182430
