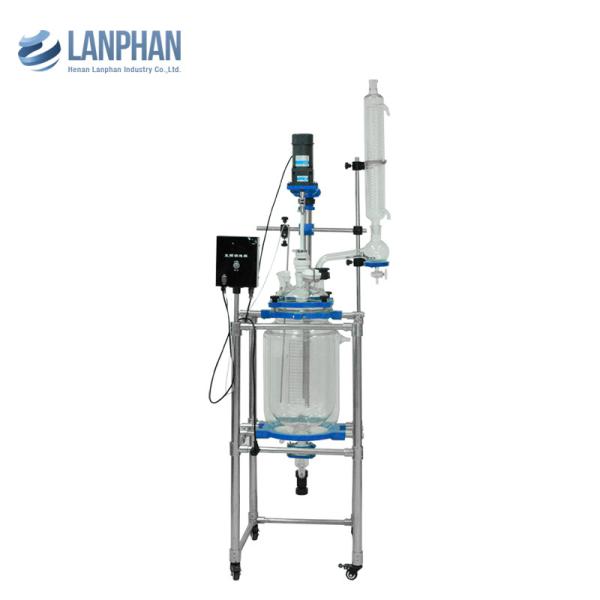

    High Pressure H2100mm 20 liter Lab Glass Reactor

    Ask Lasest Price
    Brand Name : Lanphan
    Certification : CE ISO
    Supply Ability : 1000 Set/Sets per Month
    Price : $1,846.00
    • Product Details
    • Company Profile

    High Pressure H2100mm 20 liter Lab Glass Reactor


    lab high pressure 20L bioreactor chemical glass reactor


    Product Description .

    Brief Description of 20L chemical glass reactor

    In a chemical glass reactor, the reaction flask volume is 20L, interlayer volume is 8L, stirring diameter of axle is 12mm, and power of stirring is 90W. S212-20L double-layer glass reactor is an audacious product that has combined advantages of domestic and foreign like products.

    It adopts double-layer glass design, putting reaction solvent in the internal layer to do stirring reaction, and connecting different cold and heat sources(refrigerating fluid, hot water or hot oil) to interlayer to do cyclic heating or cooling reaction. Under set constant temperature condition, you can conduct stirring reaction under normal or negative pressure in airtight glass reactor, as well as conducting backflow and distillation of reaction solution.

    S212-20L double-layer glass reactor is an ideal pilot test and production equipment for modern fine chemical engineering, biological pharmacy and new material synthesis. This glass reactor series mainly contains following parts: double-layer glass reaction kettle, a set of component cover of glass reactor, condenser, constant voltage funnel, frequency conversion controller, rotate stirring and sealing system, stainless steel frame system, etc.

    High Pressure H2100mm 20 liter Lab Glass Reactor

    Product Display .

    High Pressure H2100mm 20 liter Lab Glass ReactorHigh Pressure H2100mm 20 liter Lab Glass ReactorHigh Pressure H2100mm 20 liter Lab Glass ReactorHigh Pressure H2100mm 20 liter Lab Glass Reactor

    If you are interested in this product, pls send me inquiry Contact Supplier


    Technical Parameter of Cheapest Professional Glass Reactor Flask for Laboratory

    Basic ParameterTypeS212-20L
    Glass materialGG-17
    Frame materialStainless Steel
    Pipe fitting material304 Stainless Steel
    Move methodUniversal castors with braking
    Reaction flask volume20L
    Interlayer volume8L
    Flange type oil in and out circulation portEnter from low port, come out from high port
    Number of reactor bottle6
    Discharge outlet liftoff height450mm
    Reactor reaction temperature-80-250 degree
    Vacuum degree0.098Mpa
    Stirring speed0-450rpm
    Stirring diameter of axis12mm
    Stirring power90W
    Voltage/Frequency(V/Hz)220V/50Hz
    Boundary dimension (mm*mm*mm)560*560*2100
    Package Dimension(mm*mm*mm)1480*660*810 0.80m³
    Package weight(KG)80
    Functional ConfigurationsSpeed adjustment modeElectric stepless speed regulation
    Electrical machine configurationLow speed reinforcement electrical machine, speed ratio 3:1
    Rotate speed display modeLiquid crystal digital display
    Temperature display modePT100 sensor digital display
    Sealing modePTFE sealing, ¢50 flange stirring mouth
    CondenserVertical high efficiency double backflow condenser pipe 100*670mm, 40# standard mouth
    Backflow (distillation) deviceBackflow elbow is equipped with discharge switch, 50# ball milling mouth
    Dropwise adding device1L constant voltage funnel, 40# standard mouth
    Depression device34# standard mouth reducing valve
    Temperature testing tube24# standard mouth
    Solid charging¢80 flange mouth with PTFE cover
    Discharging methodInclined glass discharging valve, ¢80 flange mouth
    Vacuum display modeVacuum meter
    Stirring connecting methodUniversal joint connecting
    Stirring barAnchor type and push type stainless steel bar, covered with PTFE
    Optional ConfigurationsMain body supportTray type
    Collecting deviceCollection bottle
    Anti-ExplosionAnti-explosive frequency changer, anti-explosive electric machine EX180W 0-1400 rotate
    Frame partSpraying plastics pr PTFE
    Heat insulation deviceCotton insulation
    Sealing partCeramic bearing, mechanical sealing
    CondenserHorizontal type condenser can reduce overall height
    Reactor coverCustom-made PTFE reactor cover
    Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

    Packing List of Cheapest Professional Glass Reactor Flask for Laboratory

    Machine PartGlass Part
    Stainless steel frame1 setVessel body1 pc
    Main upright1 setVessel cover1 pc
    Anti-explosion electric machine1 setCondenser1 pc
    Anti-explosion electric box1 setConstant voltage funnel1 pc
    Cardan joints1 pcTemperature tube1 pc
    Bottleneck ring, cover1 set29# hollow plug1 pc
    Stirring rod1 pc34# reducing valve1 pc
    Stirring F41 setBackflow bend1 pc
    Discharge valve1 set
    Flange plate of discharge valve1 set
    YZ-100 vacuum meter1 pc
    Bottle backing ring1 pc
    Backing ring of condenser1 pc
    Clamp of condenser1 set
    Black nut1 set
    F4 cover of solid feeder mouth1 set
    Clamp to fix F4 cover1 pc
    Spare Accessories
    Instruction book1 pc¢4,¢5 allen wrench1 pc each
    Warranty card1 pc¢48 ºring1 pc
    Certificate of quality1 pc8A protective pipe1 pc
    Packing list1 pc
    The final explanation right of this instruction book belongs to our company, if product has change, please subject to real products, we will not change the instruction book.

    Corollary Equipment .


    High Pressure H2100mm 20 liter Lab Glass Reactor

    Workshop .

    High Pressure H2100mm 20 liter Lab Glass Reactor

    High Pressure H2100mm 20 liter Lab Glass ReactorHigh Pressure H2100mm 20 liter Lab Glass Reactor

    For more information, please contact us

    Contact Supplier

    High Pressure H2100mm 20 liter Lab Glass ReactorHigh Pressure H2100mm 20 liter Lab Glass Reactor

    Contact us

    for more details about price, packing, shipping and discount.

    Tel: 86-371-67447999
    Web: http://www.rotovap.cn
    Address: Jianshe Road, Zhongyuan District, Zhengzhou,
    Henan, China

    Q: What kind of payment terms do you accept?

    A: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.

    Q: What’s the loading capacity of double-layer glass reactor?

    A: Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.

    Q: What’s the difference between single-layer and double-layer glass reactor?

    A: Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
