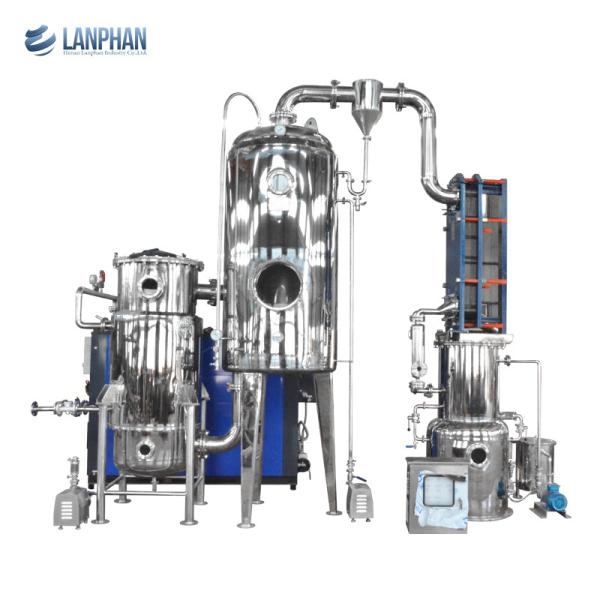

    Falling Film Evaporator Evaporation Concentrator stainless steel single effect

    Ask Lasest Price
    Brand Name : Lanphan
    Model Number : FFE-50
    Delivery Time : 7 work days
    Certification : CE
    Price : $19650
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Unit/Units per Month
    • Product Details
    • Company Profile

    Falling Film Evaporator Evaporation Concentrator stainless steel single effect


    Falling Film Evaporator Evaporation Concentrator Double Triple Effect


    Product Description


    The single-effect external circulation evaporator completes most of the gas-liquid separation in the separation chamber.

    The single-effect external circulation evaporator is a device that uses negative pressure to heat the material to make the material liquid boil, remove the vaporized part, and concentrate the material liquid. The equipment has a wide range of applications in many fields such as biopharmaceuticals, health foods, daily chemicals, flavors and fragrances.

    The function of single-effect falling film evaporator is to separate the ethanol from material and condense and recover it through reduced pressure vacuum and evaporation. The single-effect falling film evaporator used for ethanol solution production is different from the general single-effect falling film evaporator used for aqueous solution production


    Working Principle of Chiller


    The thinner liquid with lower concentration enters the tube side of the heater, and the high-temperature steam enters the shell side of the heater. The steam indirectly heats the material liquid in the tube side, the liquid level rises, and it is injected into the separator from the spray tube for flash evaporation. In the separator, the heavier material liquid drops to the bottom and returns to the heater to boil and spray into the separator again to form a cycle; The lighter secondary steam rises to the top and enters the shell side of the condenser, enters the condensate collection tank after becoming a liquid phase, and is finally discharged by the pump for recycling or other treatment. A part of the gas is sucked and discharged by the vacuum pump. When the material liquid is concentrated to a certain degree, the material can be discharged after the sampling is confirmed to be qualified. At this point, the evaporation concentration process is completed.


    Features


    Closed system

    The energy saving effect is remarkable.

    Unique defoaming device to prevent material running out.

    The equipment has good corrosion resistance and is more convenient to clean.

    It can be equipped with a microcomputer control system, which is easy to use and stable in effect.

    The heating time of the material is short, the evaporation speed is fast, and the concentration ratio is large.


    RFQ


    1.Question: How to choose suitable equipment ?

    Answer: You tell us your requirements (or example: capacity, temperature range, pressure, etc ), we will recommend you the best suitable equipment.

    2. Question: What's the minimum order quantity?

    Answer: One set at present.

    3. Question: What kind of payment term do you accept?

    Answer: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.

    4. Question: How will you delivery these goods?

    Answer: It will be decided according to your quantity. Normally we will choose International Express, Air and sea.Packaging & Shipping

    Technical Parameters

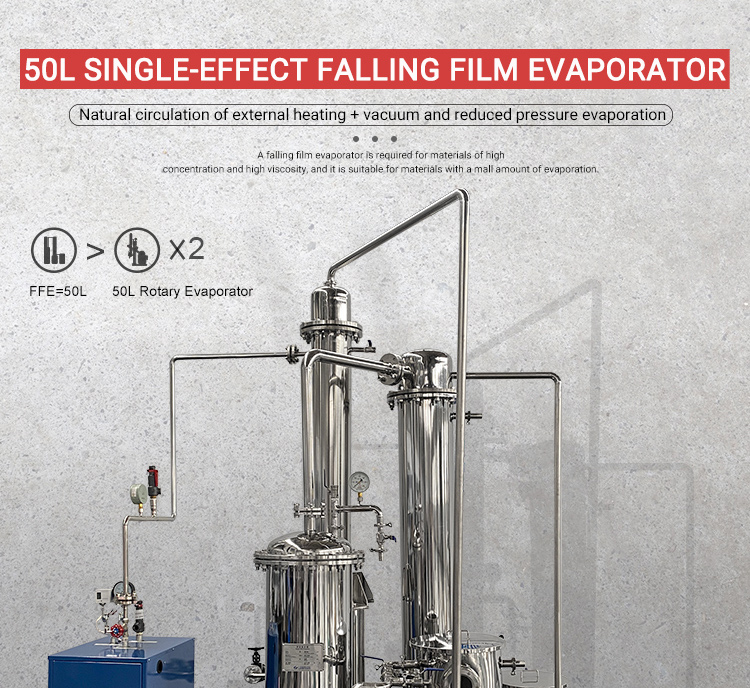

    NameElectric heating single effect falling-film evaporator
    ModelFFE-50
    Evaporation capacity50L/H
    power2.46KW
    Cooling water consumption1T/h (inlet 25°C, outlet 35°C)
    Boundary dimension1600x900x2600mm
    Heating Area

    3 ㎡

    Condensing Area5 ㎡
    MaterialStainless Steel
