220V 5 Liter Glass Lined Chemical Mixing Reactor

    Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers

    Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers
    • Buy cheap 220V 5 Liter Glass Lined Chemical Mixing Reactor from wholesalers

    220V 5 Liter Glass Lined Chemical Mixing Reactor

    Ask Lasest Price
    Brand Name : Lanphan
    Certification : CE ISO
    Supply Ability : 3000 Set/Sets per Month
    Price : $1,000.00
    • Product Details
    • Company Profile

    220V 5 Liter Glass Lined Chemical Mixing Reactor


    Factory Bioreactor Prices Glass Lined Chemical Mixing Reactor


    Product Description .

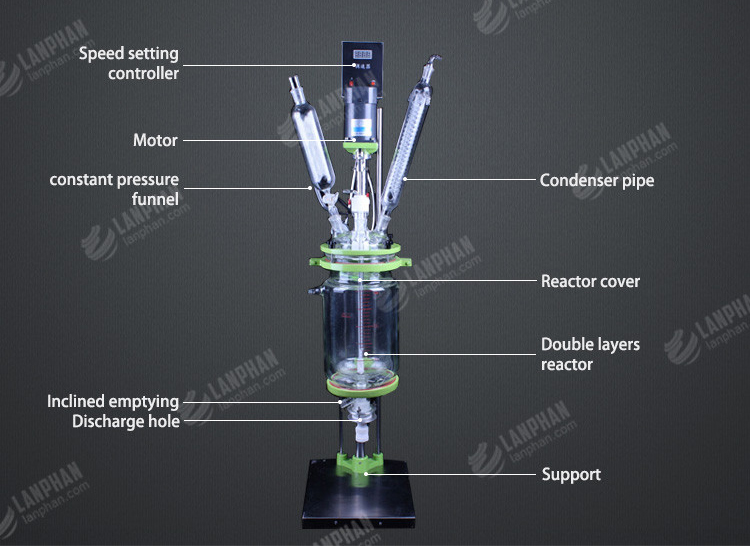

    The reactor is especially suitable for the cannabis extraction process. The reactor body is primarily made of the high borosilicate glass(GG-17 material) and PTFE, possessing both excellent chemical and physical properties. The transparent flask makes it easy to observe reaction liquid material. The stainless steel stirring rod is covered with PTFE, applicable for various solvent stirring without corrosion and pollution. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force, no spark and long service life. Sealed by PTFE component and fluorous rubber, it is capable of maintaining higher vacuum degree and longer service life. This equipment has speed controller, and it can set rotary speed by speed governing turn-knob, which is perceptual intuition and convenient. This equipment has vacuum display function, which can select the best working vacuum degree for low boiling point material. And PTFE inclined discharge valve makes it so convenient to recycle solvent.

    Product Display .

    220V 5 Liter Glass Lined Chemical Mixing Reactor220V 5 Liter Glass Lined Chemical Mixing Reactor220V 5 Liter Glass Lined Chemical Mixing Reactor

    If you are interested in this product, pls send me inquiry Contact Supplier


    Basic ParameterTypeS212-10L
    Glass materialGG-17
    Frame materialStainless Steel
    Pipe fitting material304 Stainless Steel
    Move methodUniversal castors with braking
    Reaction flask volume10L
    Interlayer volume6L
    Flange type oil in and out circulation portEnter from low port, come out from high port
    Number of reactor bottle6
    Discharge outlet liftoff height450mm
    Reactor reaction temperature-80-250 degree
    Vacuum degree0.098Mpa
    Stirring speed0-450rpm
    Stirring diameter of axis12mm
    Stirring power90W
    Voltage/Frequency(V/Hz)220V/50Hz
    Boundary dimension (mm*mm*mm)520*520*2000
    Package Dimension(mm*mm*mm)1370*590*800 0.65m³
    Package weight(KG)68
    Functional ConfigurationsSpeed adjustment modeElectric stepless speed regulation
    Electrical machine configurationLow speed reinforcement electrical machine, speed ratio 3:1
    Rotate speed display modeLiquid crystal digital display
    Temperature display modePT100 sensor digital display
    Sealing modePTFE sealing, ¢50 flange stirring mouth
    CondenserVertical high efficiency double backflow condenser pipe 100*670mm, 40# standard mouth
    Backflow (distillation) deviceBackflow elbow is equipped with discharge switch, 50# ball milling mouth
    Dropwise adding device1L constant voltage funnel, 40# standard mouth
    Depression device34# standard mouth reducing valve
    Temperature testing tube24# standard mouth
    Solid charging¢80 flange mouth with PTFE cover
    Discharging methodInclined glass discharging valve, ¢80 flange mouth
    Vacuum display modeVacuum meter
    Stirring connecting methodUniversal joint connecting
    Stirring barAnchor type and push type stainless steel bar, covered with PTFE
    Optional ConfigurationsMain body supportTray type
    Collecting deviceCollection bottle
    Anti-ExplosionAnti-explosive frequency changer, anti-explosive electric machine EX180W 0-1400 rotate
    Frame partSpraying plastics pr PTFE
    Heat insulation deviceCotton insulation
    Sealing partCeramic bearing, mechanical sealing
    CondenserHorizontal type condenser can reduce overall height
    Reactor coverCustom-made PTFE reactor cover
    Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

    Packing List of Cheap Updated 10L Lab Chemical Reactor for Fermentation

    Machine PartGlass Part
    Stainless steel frame1 setVessel body1 pc
    Main upright1 setVessel cover1 pc
    Anti-explosion electric machine1 setCondenser1 pc
    Anti-explosion electric box1 setConstant voltage funnel1 pc
    Cardan joints1 pcTemperature tube1 pc
    Bottleneck ring, cover1 set29# hollow plug1 pc
    Stirring rod1 pc34# reducing valve1 pc
    Stirring F41 setBackflow bend1 pc
    Discharge valve1 set
    Flange plate of discharge valve1 set
    YZ-100 vacuum meter1 pc
    Bottle backing ring1 pc
    Backing ring of condenser1 pc
    Clamp of condenser1 set
    Black nut1 set
    F4 cover of solid feeder mouth1 set
    Clamp to fix F4 cover1 pc
    Spare Accessories
    Instruction book1 pc¢4,¢5 allen wrench1 pc each
    Warranty card1 pc¢48 ºring1 pc
    Certificate of quality1 pc8A protective pipe1 pc
    Packing list1 pc
    The final explanation right of this instruction book belongs to our company, if product has change, please subject to real products, we will not change the instruction book.

    Corollary Equipment .

    220V 5 Liter Glass Lined Chemical Mixing Reactor

    Workshop .

    220V 5 Liter Glass Lined Chemical Mixing Reactor

    220V 5 Liter Glass Lined Chemical Mixing Reactor220V 5 Liter Glass Lined Chemical Mixing Reactor

    For more information, please contact us

    Contact Supplier

    220V 5 Liter Glass Lined Chemical Mixing Reactor220V 5 Liter Glass Lined Chemical Mixing Reactor

    Contact us

    for more details about price, packing, shipping and discount.

    Tel: 86-371-67447999
    Web: http://www.rotovap.cn
    Address: Jianshe Road, Zhongyuan District, Zhengzhou,
    Henan, China

    Q: What kind of payment term do you accept?

    A: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.

    Q: What’s the loading capacity of double-layer glass reactor?

    A: Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.

    Q: What’s the difference between single-layer and double-layer glass reactor?

    A: Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
