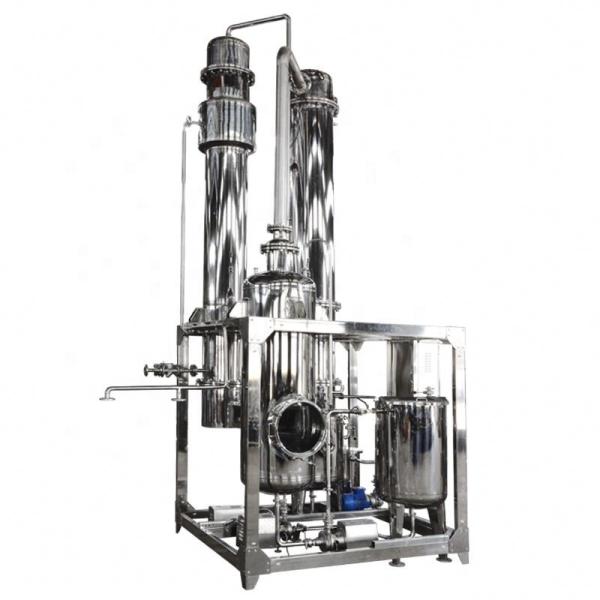

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    Ask Lasest Price
    Brand Name : Lanphan
    Certification : CE
    Supply Ability : 1000 Set/Sets per Month
    Price : $28,620.00
    • Product Details
    • Company Profile

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator


    flim turnkey steam heating single effect falling film evaporator


    Product Description

    The single-effect falling film evaporator is widely used in food, dairy, chemical, pharmaceutical, biological engineering, environmental protection engineering and corn deep processing, such as for aqueous solutions, organic solvent solutions, fruit and vegetable juices, milk, eggs, vitamin C, collagen , Tea immersion liquid, sodium glutamate and other evaporative concentration. It is especially suitable for evaporative concentration of heat-sensitive materials, and the beneficial elements of the material can be protected to the greatest extent during the heating and evaporation process.


    The single-effect falling film evaporator is to separate the ethanol from material and condense and recover it through reduced pressure vacuum and evaporation. It is used for ethanol solution production is different from the general single-effect falling film evaporator used for aqueous solution production. Ethanol has a low boiling point and is volatile. Ethanol can be evaporated easily under vacuum and reduced pressure, so it has a small evaporation area. It is difficult to condense and recover ethanol vapor, so the heat exchange area of the condenser is relatively large. In order to obtain a good cooling effect, two or more stages are often used for cooling recovery, which is also different from the general aqueous solution evaporation.


    In the working process of a falling film evaporator, the materials are evenly distributed into each falling film pipe through the distributor, and flow down the wall of the pipe in the state of a liquid film. Under the action of gravity and the secondary steam flow, the materials get evaporated while flowing down. At the bottom of the falling film tube, the materials and secondary steam are basically separated, and they reach the separation chamber to achieve complete separation.


    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    S01——Evaporation and separation chamber
    E01——Tube heater E02——Tube condenser
    E03——Coil condenser E04——Vacuum pump cooler
    V01——Middle tank V02——Ethanol collection tank
    P01——Feeding pump P02——Concentrate discharge pump
    P03——Discharge pump of ethanol P04——Water ring vacuum pump


    Working process of a falling film evaporator


    Feeding(V01) - evaporation(E01) - separation(S01) - condensation(E02) - cooling (E03) - storage tank (V02)


    Features of a falling film evaporator


    1. Low heating temperature
    2. High evaporation speed
    3. Short liquid residence time
    4. Continuously feeding and discharging
    5. Suitable for heat sensitive materials
    6. Energy-saving

    ModelFFE-20FFE-50FFE-100FFE-200FFE-500FFE-1000
    Evaporation speed20501002005001000
    Heating area1.235122550
    Condensing area1.557.5163060
    Feeding pump0.550.551.11.51.51.5
    Discharge pump 10.550.551.11.51.51.5
    Discharge pump 20.550.551.11.11.51.5
    Water ring vacuum pump0.750.810.811.52.23.85
    Power2.42.464.115.66.78.35
    Power supply220V/60Hz Three-phase power,Other component could be customized

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    Corollary Equipment

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    Company Information

    Turnkey Steam 1.5kw 200L/H Falling Film EvaporatorTurnkey Steam 1.5kw 200L/H Falling Film EvaporatorTurnkey Steam 1.5kw 200L/H Falling Film EvaporatorTurnkey Steam 1.5kw 200L/H Falling Film Evaporator

    Turnkey Steam 1.5kw 200L/H Falling Film Evaporator

    FAQ

    1. Why is single-effect falling film evaporator commonly used for ethanol recovery?
    Ethanol has low heat content and is volatile, so it is not suitable for multi-effect falling film evaporator.


    2. What is the feed temperature of the single-effect falling film when recovering ethanol?
    It is recommended to be above 20 °C, if the low temperature material liquid can add a preheating device before the cloth.


    3. How much is the steam pressure in the heating chamber controlled?
    The steam pressure is controlled within 0.2MPa, and the temperature is within 130 °C.


    4. How to control the steam temperature?
    By adjusting the steam pressure to adjust the steam temperature, the temperature changes with the pressure.


    5. What material is the single effect falling film evaporator, can it be made of 316 material?
    Hygienic grade 304 material. According to customer needs can be made of 316 material.


    6. Is the single-effect falling film evaporator controlled automatically or manually?
    Manual control. According to customer needs can make automatic control system.


    7. Can 200L single effect falling film evaporator be sent by air?
    After special packaging design, it can be sent by air.
