High Productivity 250W 50 Liter Lab Rotary Evaporator

Ask Lasest Price
Brand Name :	Lanphan
Certification :	CE
Supply Ability :	1000 Set/Sets per Month
Price :	$2,708.00

Add to Cart

Product Details
Company Profile

High Productivity 250W 50 Liter Lab Rotary Evaporator

Vacuum Evaporation Machine Lab 50 Liter Rotary Evaporator

The rotary evaporator is regarded as the essential equipment for the processes of evaporation, concentration, crystallization, drying, separation, and solvent recovery in many fields, and it is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure.

Basic Parameter	Type	RE-5003
	Glass Material	GG-17
	Support Material	stainless steel
	Shell Material	Antisepsis Plastic Spraying 710620700 mm
	Inner Container Material	stainless steel 500*220 mm
	Baseboard Size	804*574 mm
	Volume of Rotary Flask	50L ¢125 flange aperture
	Volume of Receivling Flask	20L ¢60 flange aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	180W
	Rotating Speed	0-110rpm
	Heating Power	8KW
	Temperature Control Range of Bath Kettle	400℃
	Temperature Accuracy	±1℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	180mm
	Shape Size(mmmmmm)	15206202470 mm
	Package Weight (KG)	170
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotating Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing
	Condenser	Vertical efficient condenser, main condenser 160840, assistant condenser 160530
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	40# Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
	Continuous Collecting	Check valve control
	Charging Mode	PTFE Charging valve, ¢60 flange aperture
Optional Equipping	Up and Down Mode	Automatic Up and Down
	Collecting Device	Double Recycling bottle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX120W
	Frame Part	Plastic Spraying or PTFE Spraying
	Bath Kettle Material	whole 304 stainless steel

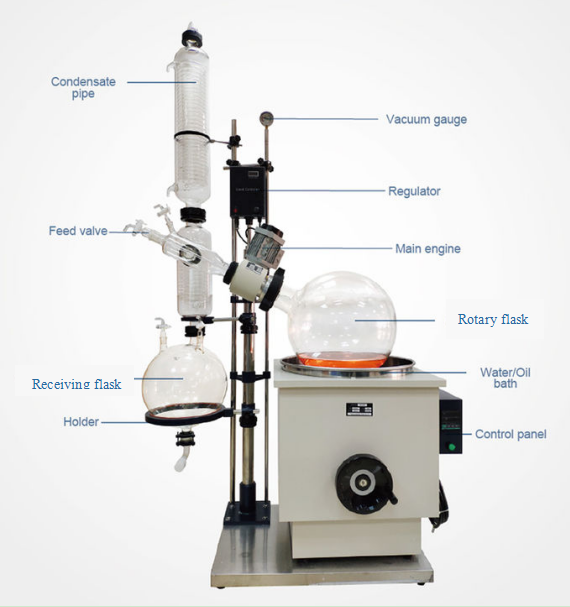

Product Description

High Productivity 250W 50 Liter Lab Rotary Evaporator

Main Characteristics:

1.The main support is made of stainless steel and aluminum alloy, with a reasonable structure and exquisite material.

2. The glass parts all adopts high borosilicate glass, which is high temperature and corrosion resistant.

3. The sealing system adopts imported fluorine rubber and Teflon as the bi-direction combined seal, with a anti-corrosion property and long service life, which can maintain high vacuum degree.
4. The vacuum gauge can display the real-time vacuum, and the oiliness table is anti-vibration.

5. It has the function of over-temperature safety protection, which can stop heating by cutting off power automatically when the actual temperature exceeds the set temperature
6. It has the function of dry burning prevention, which can cut off power automatically when the water level in the bath kettle is under the heating tube.
7. In the case of sudden power failure in the operation of the equipment, it can stop heating automatically when turning on the power again.

8. The inner pot adopts high quality stainless steel 304, which is anti-corrosion and durable. The outer layer of the pot is covered with silicone layer, which is safer to use at high temperature.

9. The receiving flask has a lower discharge port, which can recycle and discharge evaporated extract easily.
10. The check valve for controlling can realize the continuous feeding. The vacuum can be switched when the equipment is operating.

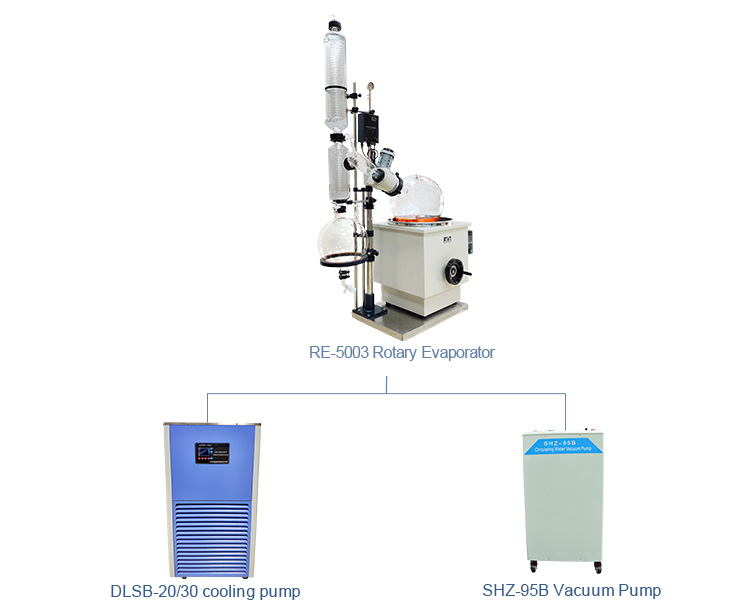

Corollary Equipment

High Productivity 250W 50 Liter Lab Rotary Evaporator
