lanphan Vacuum Distillation Lab Rotary Evaporator

    Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers

    Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers
    • Buy cheap lanphan Vacuum Distillation Lab Rotary Evaporator from wholesalers

    lanphan Vacuum Distillation Lab Rotary Evaporator

    Ask Lasest Price
    Brand Name : Lanphan
    Certification : CE
    Price : $905.00
    • Product Details
    • Company Profile

    lanphan Vacuum Distillation Lab Rotary Evaporator


    lanphan reliable manufacturer glass rotating evaporator


    Product Description

    RE-2000E rotary evaporator is a newly designed new generation smart rotary evaporator, it adopts double row high-capacity blue backlight LCD as the human-computer interface, control part use high-performance single chip as main control chip, adopt special control program according to controlled member, beauty in appearance and stable in property. Besides, it has reserved updating connector, which can update software to meet client requirements.


    RE-2000E rotary evaporator has following features:
    1. Use PTFE water bath kettle, which is heat preservation, energy-saving, anti-explosion, splash-proof, rust protection and anti-pollution;
    2. Primary member use rust protected aluminum alloy and special engineering plastic, that is durable in use and beauty in appearance;

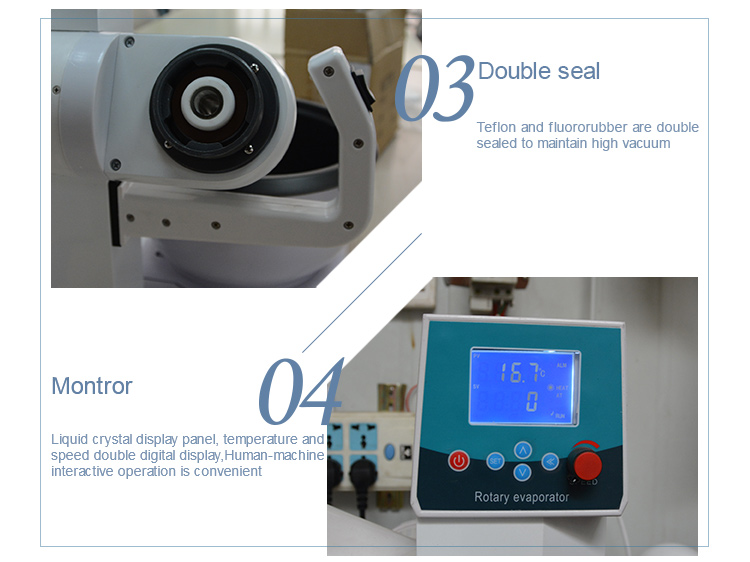

    3. Has the function of temperature and rotating speed, double display of temperature and rotating speed;
    4. Components use new-type interface design, easy to assemble;
    5. Double sealed by PTFE and fluorine rubber sealing ring to keep high vacuum degree;
    6. Use advanced PID temperature control to control temperature accurately;
    7. Whole body adopts building block design, that is strong in expand ability;
    8. It can smoothly up and down, easy to handle and latch position;
    9. Equipped with efficient vertical condensate glass component, condensation area can reach up to 1500cm², fast condensation speed, recovery rate almost 100%;
    10. Has the function of dry burning resistant protection and safe temperature loop;
    11. Has a wide speed regulation range, can set temperature freely within 0-180rpm;
    12. Durable design, can choose plate bursting disk glass component as needed.


    ParameterTypeRE-2000E
    Glass MaterialGG-17
    Support MaterialAluminum alloy
    Shell MaterialPTFE recombination, full-closed heating
    Volume of Rotary Bottle1L 24# Standard Aperture
    Volume of Recycling Bottle1L 35# Standard Aperture
    Vacuum Degree0.098Mpa
    Rotating Power40W Brushless Electric Machine
    Rotating Speed0-180rpm
    Heating Power1.5KW
    Temperature Control Range of Bath Kettle0-99℃
    Temperature Accuracy±1℃
    Voltage/Frequency (V/Hz)220V/50Hz
    Up and Down Distance120mm
    Shape Size(mm*mm*mm)660*420*830
    Package Size(mm*mm*mm)630*560*540 0.19m³
    Package Weight (KG)26
    Function AllocationSpeed Adjustment ModeElectrodeless Speed Regulation
    Rotating Speed Display ModeLCD
    Temperature Display ModePT100 Sensor digital display
    Temperature Control ModeSmart Temperature Control
    Sealing ModeTelfon Sealing
    CondenserVertical Condenser 85*430mm
    Up and Down ModeAutomatic Up and Down of Main Engine
    Continuous Charging19# Standard Aperture Feeding Valve
    Optional EquippingAnti-splash DeviceEquipping Transparent Cover of Bath Kettle
    Heating Methodoil bath 0-400℃
    Material of Bath Kettlewhole 304 stainless steel
    Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

    lanphan Vacuum Distillation Lab Rotary Evaporator

    lanphan Vacuum Distillation Lab Rotary Evaporatorlanphan Vacuum Distillation Lab Rotary Evaporator

    Basic
    Rotary evaporator, also called rotavap or rotovap, is a commonly used lab instrument in chemistry laboratory, mainly used in continuous distillation of a large amount of volatile solvent under negative pressure. Especially for the concentration of extract liquor and distillation of receive liquid when chromatograph. Because evaporator is vacuumized, to be distilled solvent’s boiling point depressed. In general, ingredient which is distilled form sample is the target ingredient in chemical research, such as extracting some natural ingredient from organic synthesis sample. Rotary evaporator mostly is used for isolating low-boiling ingredient, such as hexane, ethyl acetate, that presenting liquid state under indoor temperature and normal pressure. Besides, it can dislodge some ingredient in sample by standard operation.
    Related Products

    lanphan Vacuum Distillation Lab Rotary Evaporatorlanphan Vacuum Distillation Lab Rotary Evaporator


    Corollary Equipment

    1.Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc.
    2.Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
    3.Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.
