    Food 100 Liters Autoclaves Chemical Medicial High Pressure Steam Sterilizers 0.23 Mpa

    Ask Lasest Price
    Brand Name : Lanphan
    Model Number : LS-100HD(automatic)
    Certification : CE ISO
    Price : $27560
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Food 100 Liters Autoclaves Chemical Medicial High Pressure Steam Sterilizers 0.23 Mpa

    High Pressure Steam Sterilizers Autoclaves Chemical Medicial Food 100 Liters


    Autoclave Parameter


    Model technical dataLS-35HD(automatic)LS-50HD(automatic)LS-75HD(automatic)LS-100HD(automatic)
    Chamber volume35L(φ318×450)mm50L(φ340×550) mm75L(φ400×600) mm100L(φ440×650) mm
    working pressure0.22MPa
    Working temperature134℃
    Max working pressure0.23 Mpa
    Heat average≤1℃
    Timer0~99min or 0~99hour59min
    Adjustment of temperature105~134℃
    Power2.5Kw/AC220V.50Hz3Kw/AC220V.50Hz4.5Kw/AC220V.50Hz
    Overall dimension470×450×1020(mm)520×500×1150(mm)550×530×1180 (mm)580×560×1290 (mm)
    Transport dimension540×540×1140(mm)580×580×1250(mm)610×610×1280(mm)640×640×1360(mm)
    G.W/N.W81Kg/63Kg94Kg/ 74Kg113Kg/ 93Kg125Kg/ 105Kg

    Food 100 Liters Autoclaves Chemical Medicial High Pressure Steam Sterilizers 0.23 Mpa


    Product Description


    The vertical pressure steam sterilizer consists of a shell, a sterilization barrel, a steam generator, a microcomputer control system, and a power supply system.

    Vertical pressure steam sterilizer (LPLS-35HD, LPLS-50HD, LPLS-75HD, LPLS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.


    Product Application

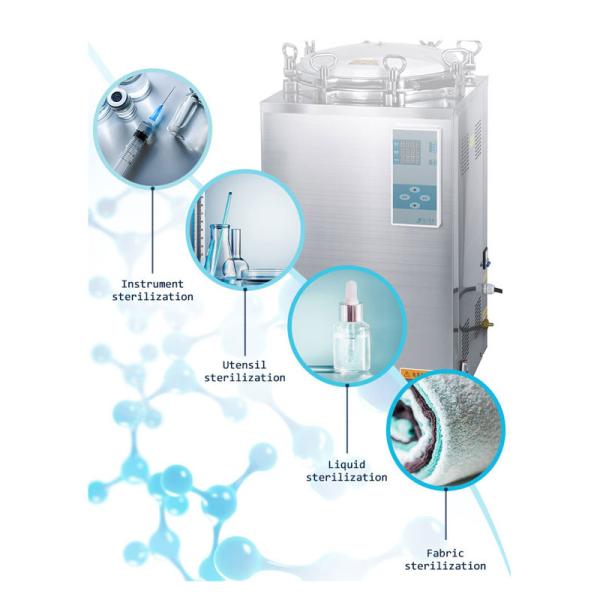

    It is widely used in clinics, scientific research institutes and other institutions to sterilize medical equipment, dressings, fabrics, glassware, solution culture medium, etc.


    Product Feature


    1. Stainless steel material

    2. Security lock

    3. Timing function

    4. Overvoltage protection

    5. Anti-dry burning

    Food 100 Liters Autoclaves Chemical Medicial High Pressure Steam Sterilizers 0.23 Mpa

    1. Handwheel

    2. self-lock device

    3. pressure gage

    4. control panel

    5. breaker

    6. power line

    7. Tap

    8. pulley

    9. tubular electric heating element

    10. Probe

    11. Low water level protector

    12. vessel

    13. Liner

    14. Sealing ring

    15. screw rod

    16. cross arm
